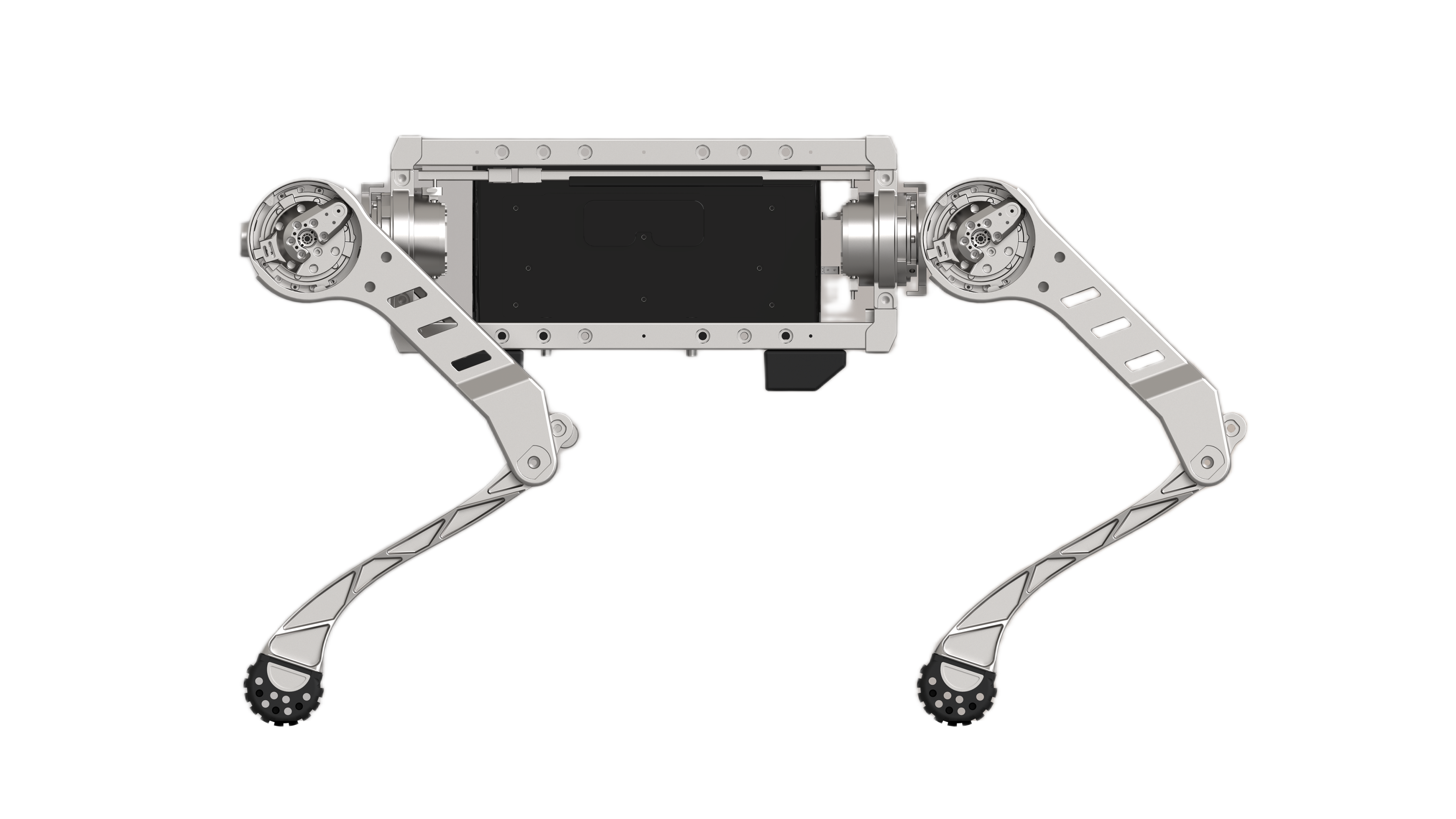

Mirror Industrial Quadruped Robot
MirrorMetekThe quadruped series covers Apollo, an industrial quadruped with 12 DoF / 2310 Wh / IP67 / 6 h / -20 to 55 degrees C; Black Panther II, the world's fastest at 40 kg, 82 cm and a peak speed of 13 m/s; and Black Panther X, a modular consumer-class model with 33 N·m, 4 m/s, 8 kg standing and 5 kg walking payload and 30 degree slope climbing.
- Full-body DoF
- 12 DoF
- Weight
- ~15.1 kg
Starting price · Black Panther X
Visit websiteContact sales
Specifications
| Hardware | Black Panther XContact sales |
|---|---|
| Actuation | |
| Full-body degrees of freedom | 12 |
| Joint torque | approx. 33 N.m |
| Motion | |
| Max speed | 0-4 m/s |
| Max slope angle | 30° |
| Max step height | approx. 20 cm |
| Max payload | 8 kg |
| Walking payload | 5 kg |
| Static payload | 8 kg |
| Power | |
| Battery capacity | 200 Wh |
| Walking runtime | 1.5 h |
| Charging | Not listed |
| Connectivity | |
| Wireless | Not listed |
| Expansion interfaces | Not listed |
| Structure | |
| Body size | Not listed |
| Weight | approx. 15.1 kg |
| Dimensions | 67.5 cm x 35.6 cm x 42.5 cm |
| Environment | |
| IP rating | Not listed |
| Operating temperature | Not listed |
Source: AI123Source updated
